150KG RDS51150 High-Torque Metal Gear Robotic Digital Servo 180 Degree 12V Waterproof Double-Shaft RC Servo for Robot

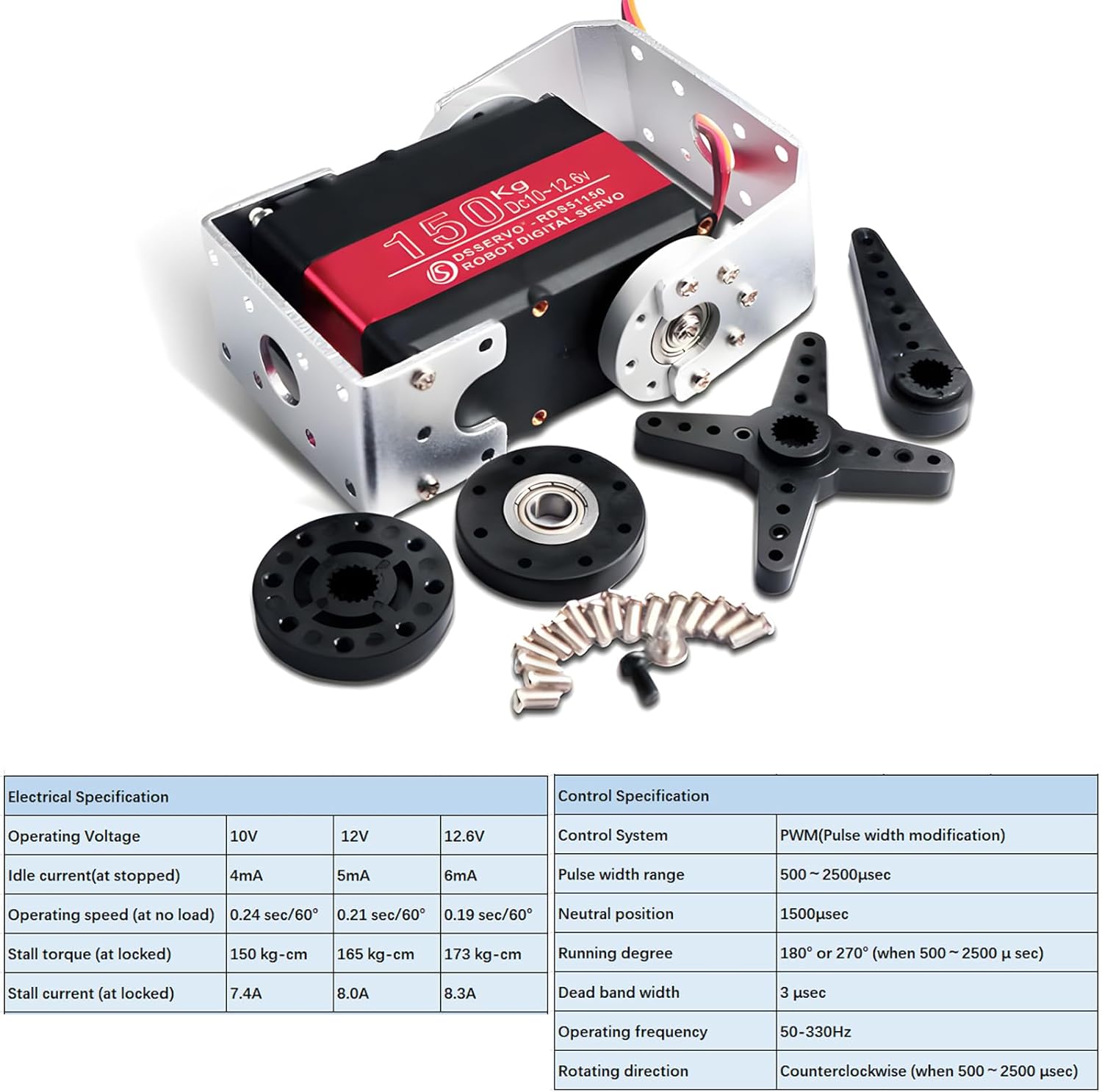

DIYmall 150KG 12V RDS51150 High-torque Metal Robotic Digital Servo Double-shaft RC Servo for Robotics Apply Environmental Condition Storage Temperature Range: -30℃～80℃ Operating Temperature Range: -15℃～70℃ Operating Voltage Range: 9-12.6V Mechanical Specification Size: 65*30*48mm Weight: Approx 265g Gear ratio: Gear ratio Bearing: Double bearing Connector wire: 300±5mm Motor: 3-pole(s) Electrical Specification Operating Voltage: 10V-12.6V Idle current(at stopped): 4mA at(10V), 5mA at(12V), 6mA at(12.6V) Operating speed (at no load): 0.24 sec/60° at(10V), 0.21 sec/60° at(12V), 0.19 sec/60° at(12.6V) Stall torque (at locked): 150 kg.cm at(10V), 165 kg.cm at(12V), 173 kg.cm at(12.6V) Stall current (at locked): 7.4A at(10V), 8.0A at(12V), 8.3A at(12.6V) Control Specification Control System: PWM(Pulse width modification) Pulse width range: 500～2500μsec Neutral position: 1500μsec Running degree: 180° (when 500～2500 μ sec) Dead band width: 3 μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500～2500 μsec) Package Included: 1 X RDS51150 Digital Metal Robotic Servo with Accessories

• Operating Voltage: 10 - 12.6 DC Volts, Best use voltage is 12.6V
• Speed: 0.24sec/60 degree at(10V), 0.21sec/60 degree at(12V), 0.19sec/60 degree at(12.6V)
• Torque: 150kg.cm.at(10V), 165kg.cm.at(12V), 173kg.cm.at(12.6V)
• Gear Type: metal gear
• This servo is waterproof, but it can not work underwater
• What you will get: 1 X RDS51150 Digital Metal Robotic Servo with Accessories
