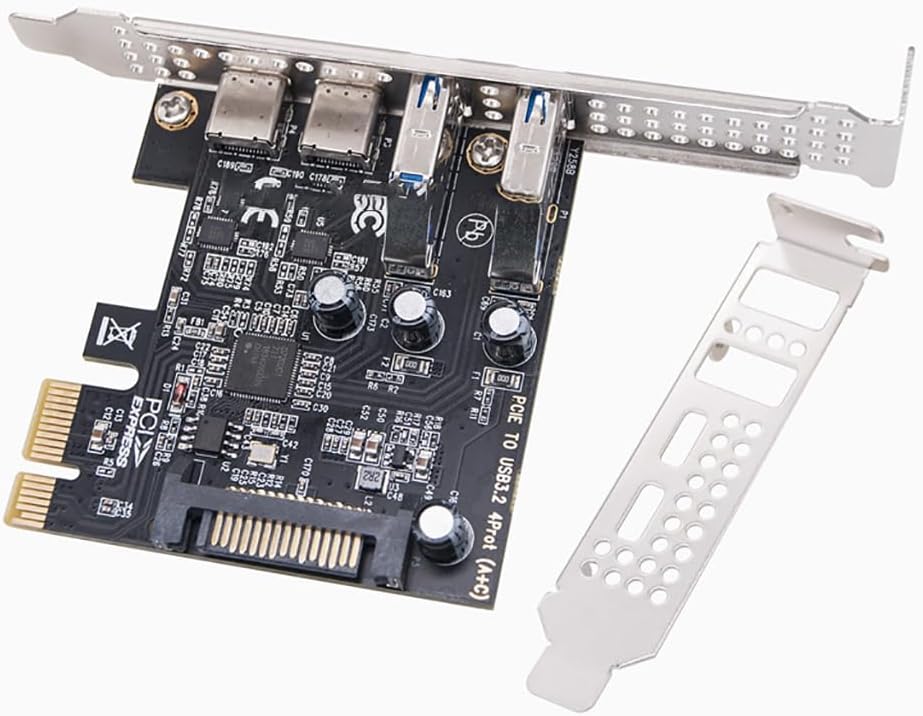

JMT PCI-E Desktop to 4-Port USB3.2 Expansion Card 5Gbps USB-C+A Adapter MCA627 with SATA 15PIN Power Port for 2U Small Chassis / 4U Large Chassis

JMT PCI-E Desktop to 4-port USB3.2 Expansion Card 5Gbps USB-C+A Adapter MCA627 With SATA 15PIN Power Port for 2U small chassis / 4U large chassis Product Parameter Product Name:Type-A+USB-C interface expansion card External Interface: PCI-E 1X(Compatible with 1X,4X,8X,16X) Interface Speed: USB3.2 gen1 5Gbps Supported chassis: 2U small chassis / 4U large chassis Main control chip: D720201 Attention: A: USB interface for USB3.2 GEN1 5Gbps ( original USB3.0 ) standard interface! B: Expansion card with DC-DC step-down IC, you can not plug the SATA power cord can work! Product Benefits. Expansion card using a number of imported solid-state capacitors, greatly ensuring the stability of the USB power supply. Can provide strong after-sales technical support, firmware and driver updates at the earliest. Each interface of the new board has increased the self-recovery insurance, double protection of USB devices. Product use. With the emergence of USB3.0, some motherboards do not come with USB3.0 interface. In order to the old motherboard can be used and experience , the USB3.0 copy speed function, this USB3.0 adapter appeared. Driver installation instructions. Product Parameters. Compliant with PCl Express Basic Specification Revision 2.0 Conforms to Gen1 of the Universal Serial Bus 3.1 specification Compliant with USB Connection SCSI Protocol Revision 1.0 Compliant with xHCI (Extensible Host Controller Interface) Specification Revision 1.1

• External Interface: PCI-E 1X(Compatible with 1X,4X,8X,16X). Interface Speed: USB3.2 gen1 5Gbps.
• Supported chassis: 2U small chassis / 4U large chassis. Using D720201 main control. Because the USB interface definition current, specially designed to increase the SATA 15PIN to strengthen the power supply.
• System Support:Compatible with WINXP WIN7 WIN8 WIN10 WIN11 LINUX , the system driver-free for 10 above, the speed will be faster than the original driver
• Each interface of the new board has increased the self-recovery insurance, double protection of USB devices.
• Compliant with xHCI (Extensible Host Controller Interface) Specification Revision 1.1. Compliant with USB Connection SCSI Protocol Revision 1.0.
